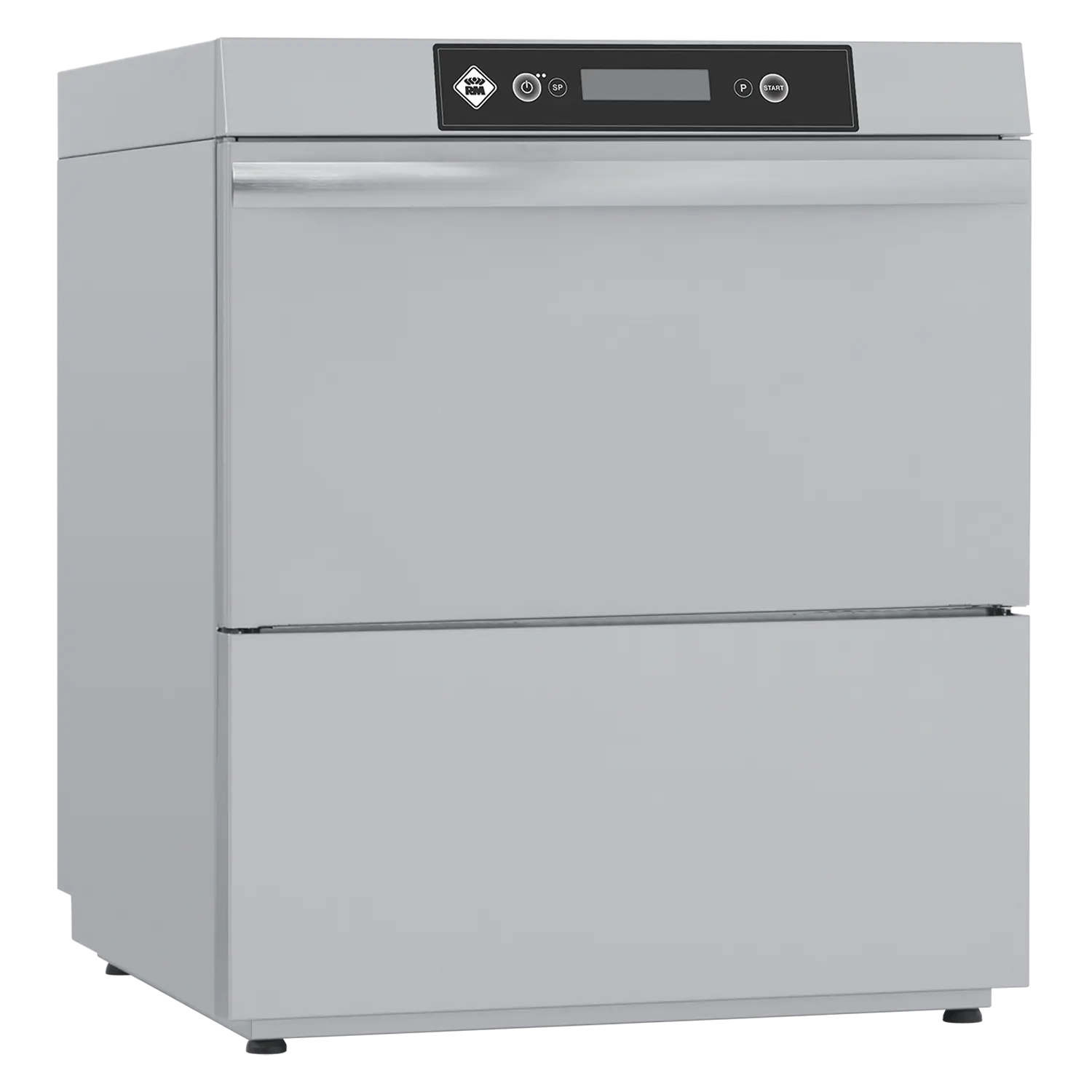

Undercounter dishwasher double skin 50x50 - 400 V | RM - TT 52 TS ABT

Article group: Dishwashers line TT

Net Width [mm]: 600

Net Depth [mm]: 600

Net Height [mm]: 720

Net Weight [kg]: 53.00

Gross Width [mm]: 650

Gross depth [mm]: 650

Gross Height [mm]: 770

Gross Weight [kg]: 61.00

Device type: Electric unit

Control type: Digital

Material: Stainless steel

Power electric [kW]: 6.770

Loading: 400 V / 3N - 50 Hz

Number of programs: 13

Opening of device: Tilting down

Door clear height [mm]: 285

Adjustable feet: Yes

Number of skin: 2

Self-cleaning cycle: Yes

Boiler capacity [ l ]: 6.00

Boiler power [kW]: 4.900

Basin volume [l]: 15

Tank power [kW]: 1.400

Number of arms for both rinsing and washing: 2

Arm connection: Hand loosen/tighten screw

Washing arm type: Rotatable two-pronged

Washing arm material: Stainless steel

Atmospheric boiler with rinse pump: Yes

Rinsing arm type: Rotating two-pronged

Rinsing arm material: Stainless steel

Deep drawn tank: Yes

Rack support: Pressed

Tank surface strainers: stainless steel

Drain filter: Evolution3 - double filtration with electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water to waste

Thermostop: Yes

Boiler thermostat adjust: Yes

Rack feed capacity: 40-30-24

Detergent and rinse pump system: ProDose - accurate dosing with a peristaltic pump

Energy Saving system: EnergySaving - Energy saving system due to lowering the boiler temperature

Rinse system: ProRinse - composite arms common for rinsing and washing with geometry for spraying water in thin jets directly against the dishes, the rinsing pump ensures constant pressure

Heating system: HotWash - System of simultaneous operation of the heating element of the bath and the boiler, reducing the time for starting the next cycle

Quick heating system: QuickReady - System for rapid heating of water in the tank

Hot water electric valve: Yes

Closing door system: ProSoft - Reduces noise, dampens the door stop, which could cause damage to dishes

Rack size [mm]: 500 x 500

Display type: LCD multifunction display

USB port: Yes, for Firmware actualisation

Drain pump: Yes

Self-diagnostics: Yes

Wash pump type: two-way - DuoFlow

Detergent dispenser: Yes

Rinse aid dispenser: Yes

Water consumption of the washing cycle: 2,2

Washing cycle time [s]: 90-120-150

Rinse water temperature [°C]: 80

Standard equipment for device: 1x glass basket, 1x plate basket, 1x cutlery basket

Program ProSpeed: Yes

Program ProFessional: Yes

Program ProTemp: Yes

Program ProClean: Yes

Program ProDrain: Yes

Program ProEco: Yes

Program ProNew: Yes

Program ProLong: Yes

Program ProGlass: Yes

Program ProWater: Yes

Program ProActive: Yes

Program ProSteel: Yes

Program ProSan: Yes
